Monitors and Hash Codes

32-Bit Implementation

On a 32-bit address machine we pack both an object's monitor and its hash code into a single word -- the object's subheader at offset 4 in the object. Figure 1 shows the placement of the subheader in an object and lists the possible states of the subheader.

(a) Subheader location in an object (b) Subheader states
Figure 1

The states of a subheader s have the following meaning:

Small Hash The object is unlocked and its hash value is the given unsigned 30-bit integer: s>>2.
Large Hash The object is unlocked and its hash value is obtained by treating s-3 as a pointer to an integer and dereferencing it: *(int *)(s-3). The 32-bit hash code is located in an extended hash code pool.
Uncomputed Hash The object is unlocked and its hash value has not been computed yet.
Uncontended Locked The object is locked. s, when treated as a pointer, points to the saved subheader in a stack slot of the thread that locked the object. No other thread is waiting for the object's lock.
Contended Locked The object is locked. s-2, when treated as a pointer, points to the saved subheader in a stack slot of the thread that locked the object. Other threads may be waiting for the object's lock.
Busy A transient state used when reading or writing the hash code of a locked object.

Monitors

Let us now take a look at the implementations of the monitor entering and exiting operations. We will start with a few examples of entering and exiting and then describe the entering and exiting procedures more precisely.

Simple and Recursive Entry Example

Uncontested monitor entries and exits are quite efficient, requiring at most one atomic operation each. When a thread wants to enter the monitor of an object o, it does the following:

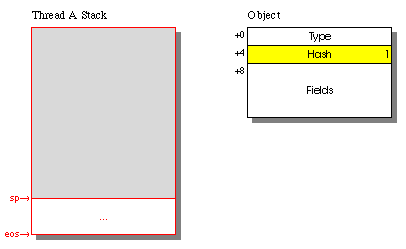

1. Initially the object is unlocked in a small hash, large hash, or uncomputed hash state. A thread that we'll call thread A has an area of memory dedicated to its execution stack. The thread's stack pointer sp points to the top of the stack, and an end of stack pointer eos points to the stack's other end.

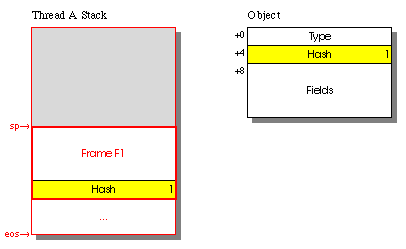

2. Thread A is executing some function we'll call F1. That function allocates a frame on thread A's stack. The compiler statically determined that function F1 contains a monitor enter/exit pair, so it reserved one word (the saved subheader slot) in F1's frame for monitor handling.

Were F1 to have nested monitor enter/exit pairs, each level of such nesting would get its own word in F1's frame for monitor handling. The MEnter (MonitorEnter) and MExit (MonitorExit) primitives contain the index of the word to use for a particular monitor entry or exit.

3. Thread A begins to execute the MEnter primitive (which, despite its name, is most likely an inline sequence of native instructions with a system call being made only if the thread needs to be suspended).

Thread A reads object o's subheader into a variable s and checks its least significant bit. Upon noticing that it is set, which means that the object is unlocked, thread A copies s into the saved subheader slot in F1's stack frame.

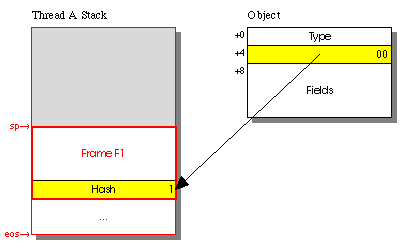

4. Now thread A does a compare-and-swap to store the pointer to the saved subheader slot into object o's subheader. The compare-and-swap atomically checks that object o's subheader still has the same value s as it did in step 3. If so, the compare-and-swap does the write. If not, the compare-and-swap aborts and thread A goes back to step 3 to try again.

If the compare-and-swap succeeded, thread A successfully acquired object o's lock and can continue executing.

5. For the sake of this example let us suppose that function F1 called another function F2 while holding the lock on object o. F2's frame appears on thread A's stack. F2 is also going to attempt to acquire a lock, so it includes its own saved subheader slot.

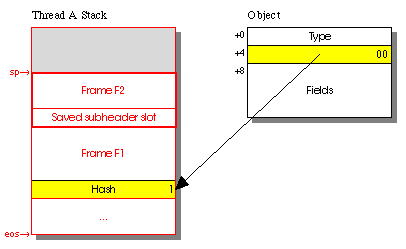

6. Suppose that thread A begins to execute another MEnter (MonitorEnter) on the same object o.

Thread A reads object o's subheader into a variable s and checks its least significant bit. It is clear, so the object is already locked. At this point thread A tests whether s points between its sp and eos. It is, which means that thread A already owns object o's lock. In this case thread A writes a zero into frame F2's saved subheader slot as a reminder that the MonitorEnter entered object o's lock recursively.

At this point thread A holds object o's lock and can continue executing.

7. Sometime later function F2 executes an MExit (MonitorExit) primitive to release object o's lock.

That primitive first reads the saved subheader slot and checks whether it is zero. If so, the lock was acquired recursively, so the MonitorExit is done.

8. Function F2 deallocates its frame and returns back to function F1.

9. At some point function F1 executes an MExit (MonitorExit) to release object o's lock.

That primitive first reads the saved subheader slot sv. sv wasn't zero, so the lock was not acquired recursively.

Thread A then reads object o's subheader into a variable s. If s is zero (the busy state), thread A yields and then reads it again until it is not zero. Once it obtains a nonzero value of s, thread A does a compare-and-swap to atomically check that s hasn't changed since it was last read, and, if so, write sv into o's subheader. If the compare-and-swap fails, thread A re-reads object o's subheader into s and tries again as above.

Now thread A checks the second least significant bit of s (the value of o's subheader just before the successful compare-and-swap). If it was clear, the lock was uncontested and the MonitorExit is done. If that bit was set, the lock was contested; we'll look at that scenario in the next example.

10. Finally function F1 returns and we're back to the state at the beginning of the example.

Contested Monitor Example

The contested case is slightly more complicated but still efficient:

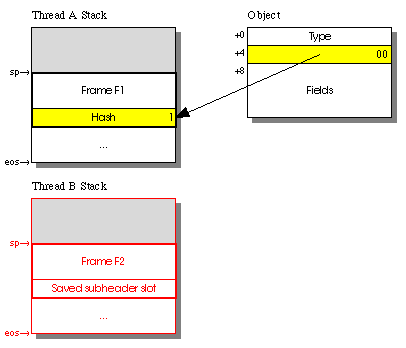

1. We begin our example by having thread A currently hold object o's lock. Thread B, which is currently executing (red in the figure), is about to attempt to acquire that lock. Thread A may or may not be executing at this time -- our scheme works on multiprocessors as well as uniprocessors.

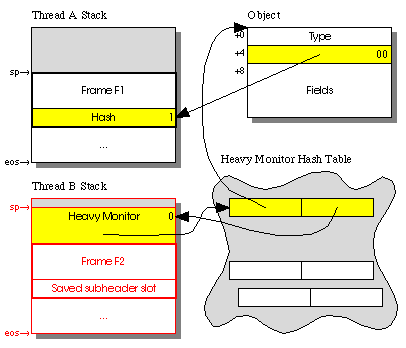

2. Thread B begins to execute the MEnter (MonitorEnter). It reads object o's subheader into a variable s and checks its least significant bit. It is clear, which means that object o is either uncontested locked, contested locked, or busy. If s is zero (the busy state), thread B yields and then retries from the beginning of this step.

If s indicated that o is locked by some other thread, thread B allocates and initializes a heavy monitor h on its stack and atomically creates an entry in a global hash table that associates h with object o. That hash table is protected by its own monitor to make sure that only one thread can manipulate it at a time.

The heavy monitor contains a sticky semaphore that is initialized to the stopped (0) state.

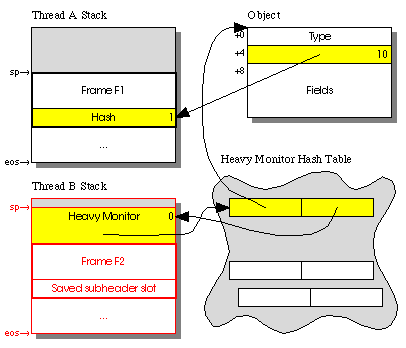

3. At this point thread B does a compare-and-swap to set the next-to-least significant bit of o's subheader. If o's subheader changed, thread B releases its heavy monitor and hash table entry and tries again from the beginning of step 2 (as an optimization, if the object is still locked, thread B could just use the new value of o's subheader and try the compare-and-swap again without releasing the heavy monitor and hash table entry).

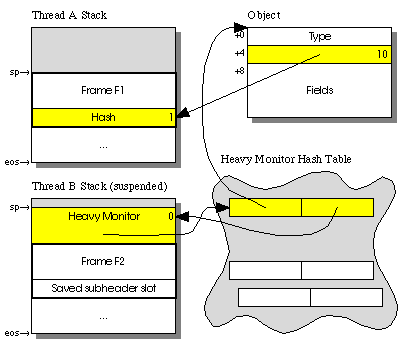

4. Now thread B suspends on the semaphore located inside its heavy monitor. It will restart when some other thread sets that semaphore to 1.

The semaphore must be sticky -- if some other thread already set that semaphore to 1 by the time thread B gets to this step, then thread B will not suspend. However, we will not illustrate this case here.

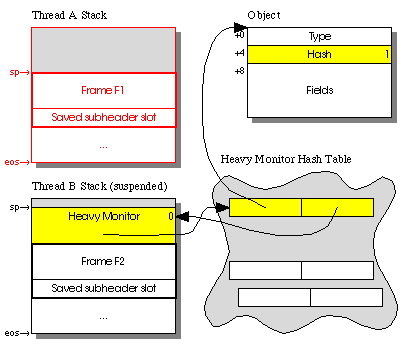

5. At some later time thread A executes an MExit (MonitorExit) and releases object o's lock. As part of the release process it notices that the next-to-least significant bit of o's subheader was set and...

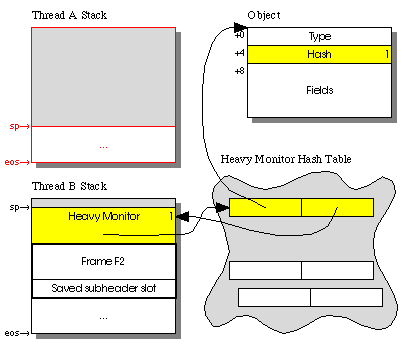

6. ...it looks for any entry referring to object o in the global hash table. If there is at least one such entry whose semaphore is 0, thread A sets that semaphore to 1, restarting that thread. In our example thread B will be scheduled to be restarted at this point.

Thread A continues to run and may eventually exit its function F1.

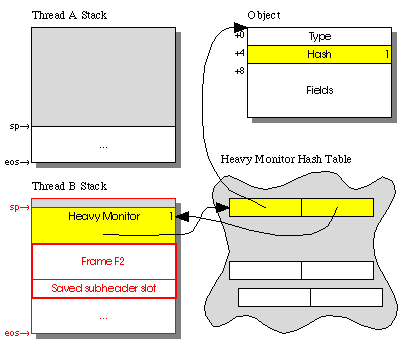

7. Once its semaphore is triggered, the scheduler restarts thread B.
8. Thread B releases its heavy monitor and global hash table entry.

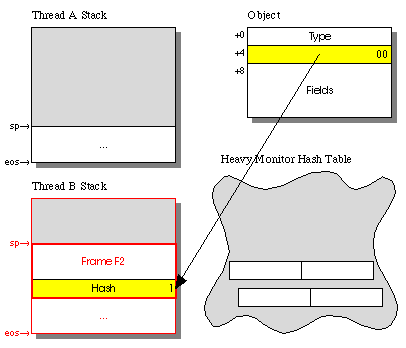

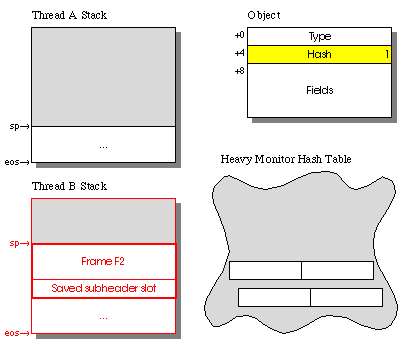

9. Now thread B starts from the beginning its MonitorEnter process. This time it succeeds and acquires object o's lock.

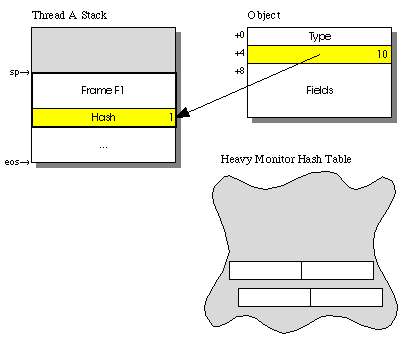

Breaking a Monitor Wait

Sometimes we may want to ask a thread to break out of an MEnter (MonitorEnter) wait to, say, handle an asynchronous exception. The MonitorEnter will terminate abnormally without having acquired a lock. We do this as illustrated in this example:

1. Let us begin as in step 4 of the contested example above. Thread B is suspended, waiting on object o's lock held by thread A. Some other thread C (not shown) now wants to stop thread B.

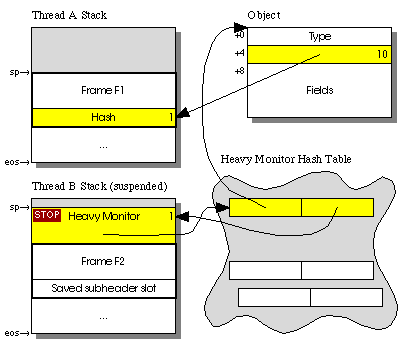

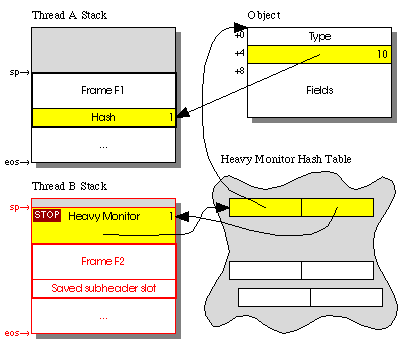

2. Thread C acquires the global lock of the global hash table, stores a STOP token in thread B's heavy monitor and sets its semaphore to 1, requesting thread B to restart.

The STOP token can be a flag or it can be a pointer to more information such as the exception that caused the stop.

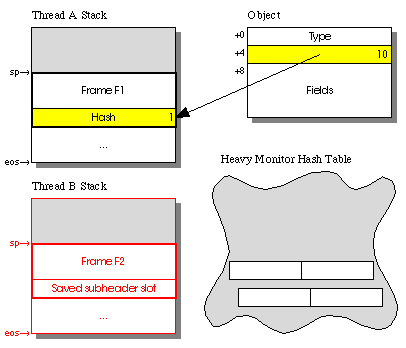

3. Thread B resumes running and notices the STOP token.
4. Instead of trying to acquire object o's lock, thread B throws an exception out of its MonitorEnter primitive.
5. The exception may propagate out of function F2 and eventually kill thread B.

Procedures

The algorithms for MonitorEnter, MonitorExit, and stopping a thread are described below. We use the following notation:

sp
The value of the current stack pointer.
eos
The other end of the current thread's stack. (The algorithms assume contiguous stacks but could be extended to handle noncontiguous stacks.)
bool := compare-and-swap(loc, old, new)
Atomically test whether the contents of memory location loc is equal to old. If so, set loc to new and return true; otherwise it leave loc unchanged, set old to the actual contents of memory location loc and return false.
sticky-wait(semaphore)
Yield the current thread until semaphore is 1. semaphore is sticky, so that if it is 1 on entry, sticky-wait returns immediately. On exit semaphore is always 1.

The following functions operate on the global heavy monitor hash table. These functions all synchronize on a single global lock, so they are all atomic with respect to each other.

heavy-lock := create-heavy(object)
Allocate and initialize a heavy lock heavy-lock on the current thread's stack and allocate a hash entry associating heavy-lock with object. The hash table can contain multiple entries associated with the same object.
Set the semaphore field in heavy-lock to 0. Clear the stop flag in heavy-lock. Return heavy-lock.
bool := destroy-heavy(heavy-lock)
Deallocate heavy-lock, which must be on the current thread's stack, and deallocate the hash entry associating heavy-lock with an object. Return the contents of the heavy-lock's semaphore field (note that it cannot change because create-heavy and notify are excluded by the global hash table's lock).
notify-heavy(object)
Find any hash entry associated with object whose heavy-lock's semaphore is 0. If such an entry exists, set that semaphore to 1 for exactly one such entry.
bool := notify-heavy(object, thread, stop)
Find the hash entry, if any, associated with object whose heavy-lock corresponds to thread. If no such an entry exists, return false. If that entry exists and its semaphore is already 1, also return false. Otherwise, set that semaphore to 1 and return true.

MonitorEnter

The algorithm that MEnter uses to acquire the lock of an object o is as follows. sv is the proper saved subheader slot in the current stack frame. s and stop are local variables.

  1. s := o->subheader
  2. If s&1 (s's least significant bit is set):
    1. sv := s
    2. If compare-and-swap(&o->subheader, s, &sv) then done; otherwise go back to step 2 (some other thread just changed the lock).
  3. Else if s is between sp and eos:
    1. sv := 0
    2. Done (we're in the recursive MonitorEnter case).
  4. Else if s is zero then:
    1. Yield for a while (the monitor is temporarily busy).
    2. Go back to step 1.
  5. Else (some other thread already has the lock):
    1. h := create-heavy(o)
    2. If compare-and-swap(&o->subheader, s, s|2) then:
      1. sticky-wait(&h->semaphore)
      2. stop := h->stop (wait for the lock to be released and this thread notified of that fact)
      3. destroy-heavy(h)
      4. If stop is non-null then throw(stop); otherwise go back to step 1.
    3. Else (o's lock changed while we were creating the heavy lock):
      1. If (s&1) or (s is between sp and eos) or (s is zero) then:
        1. If destroy-heavy(h) then notify-heavy(o) (if we were notified in the meantime, notify some other thread waiting for o).
        2. Go back to step 1.
      2. Else (some other thread still has the lock):
        1. Go back to step 5.2.

Steps 1, 2, and 3 can be inlined. The others occur only in cases of contention and should be performed in system routines.

MonitorExit

The algorithm that MExit uses to release the lock of an object o is as follows. sv is the proper saved subheader slot in the current stack frame. s is a local variable.

  1. If sv is zero, done (we're in the recursive MonitorExit case).
  2. s := &sv
  3. If compare-and-swap(&o->subheader, s, sv) then done (we successfully restored o's subheader).
  4. If s is zero then:
    1. Yield for a while (the monitor is temporarily busy).
    2. Go back to step 2.
  5. If not compare-and-swap(&o->subheader, s, sv) then go back to step 4 (some other thread just changed the lock).
  6. If s&2 is zero (s's second-least significant bit is clear) then done.
  7. notify-heavy(o) (some other thread is waiting for o)
  8. Done.

Steps 1, 2, and 3 can be inlined. The others occur only in cases of contention and should be performed in system routines.

Stop

If, while trying to stop a thread T, we determine that it is waiting for a lock inside MonitorEnter, we can break it out of that MonitorEnter by calling notify-heavy(o, T, stop), where stop is the exception that we'd like that MonitorEnter to throw. If notify-heavy returns false, then it indicates that it got to the thread too late -- it was already restarted by some other call to notify-heavy.

Code Sequences

We can use the following 80486 code sequences for the inline cases of MonitorEnter and MonitorExit.

MonitorEnter

The address of the object o is assumed to be in ebx; we can rename registers as appropriate if the address is somewhere else. The subheader is at offset 4 in the object. sv_offset is the offset to the saved subheader slot in the current stack frame.

            mov     eax,[ebx+4]                ;Read o->subheader.
Retry:      test    eax,1                      ;Is it locked?
            je      Unlocked
            sub     eax,esp                    ;Yes.  Is the stack pointer close to the subheader?
            cmp     eax,stack_guard_size
            mov     [ebp+sv_offset],0          ;Optimistically set sv to zero.
            jb      Done                       ;We're in the recursive case if the stack pointer is close
            call    SlowEnter                  ; to the subheader.  If not, enter the slower case.
            jmp     Done

Unlocked:   mov     [ebp+sv_offset],eax        ;Write sv and change o->subheader to &sv.
            lea     ecx,ebp+sv_offset
     {lock} cmpxchg [ebx+4],ecx
            jne     Retry                      ;Try again if the compare-and-swap failed.
Done:       ...

The cmpxchg instruction should have a lock prefix on a multiprocessor. It's best not to use the lock prefix on a multiprocessor because it substantially slows down the instruction.

Since access to a thread-local variable is slow under Windows NT (involving at least the code below), we check instead whether the current stack pointer esp is within stack_guard_size bytes below the object's subheader. Assuming that any two stacks are separated by guard pages at least stack_guard_size bytes long, we know that the object was locked in the same stack.

If the test fails, we call SlowEnter which then does the full check of whether the object's subheader is between esp and eos, which it gets from a thread-local variable using the code below. SlowEnter also handles the other, less frequent cases of entering a monitor.

            mov     edx,__tls_index
            mov     ecx,fs:[0x2C]
            mov     ecx,[ecx+edx*4]
            mov     edx,[ecx+eos_offset]       ;edx now contains eos.

Note that if the code is placed in a DLL that can be dynamically loaded (instead of statically loaded when the program begins executing), we must use a system call instead of the above code, and the procedure becomes several times slower.

MonitorExit

The address of the object o is assumed to be in ebx; we can rename registers as appropriate if the address is somewhere else.

            mov     ecx,[ebp+sv_offset]        ;Get sv.
            test    ecx,ecx
            je      Done                       ;If sv==0, this is a recursive unlock and we're done.
            lea     eax,ebp+sv_offset
     {lock} cmpxchg [ebx+4],ecx
            je      Done
            call    SlowExit                   ;Handle the slower cases if the compare-and-swap failed.
Done:       ...

Again, the cmpxchg instruction should have a lock prefix on a multiprocessor.

Hash Codes

Now let us turn our attention to the hash code reading and writing operations.

Extended Hash Code Pool

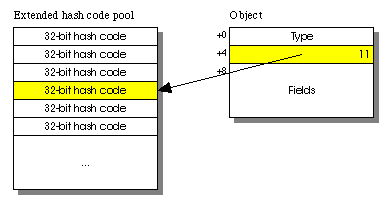

When an object's hash code is negative or greater than 0x3FFFFFFF, it needs to be stored outside the object. Such hash codes can occur for strings longer than six characters. We put them into a separate area of memory called the extended hash code pool. Each hash code in that pool is a word that belongs to one and only one object in memory. We can link free pool words into a linked list if desired. We deallocate a pool word when we deallocate its object.

Reading a Hash Code

To read the hash code of an object o or "unknown" if not known, we follow the procedure below. s and h are local variables, and exchange is defined as:

old := exchange(loc, new)
Atomically read the contents of memory location loc and return it as old while writing new into loc.
  1. s := o->subheader
  2. If s&1 (s's least significant bit is set):
    1. h := s (the object is unlocked)
  3. Else if s is between sp and eos:
    1. h := *(int *)(s & -2) (the object is locked by our thread, so we can read the saved subheader word directly)
  4. Else (the object is busy or locked by some other thread):
    1. s := exchange(&o->subheader, 0) (try to make the monitor busy)
    2. If s is zero then:
      1. Yield for a while (the monitor already was busy).
      2. Go back to step 1.
    3. If s&1 (s's least significant bit is set):
      1. h := s (the object is unlocked)
    4. Else:
      1. h := *(int *)(s & -2)
    5. o->subheader := s (restore the monitor to its non-busy state)
  5. If (h&3) == 3 (h's two significant bits are set):
    1. If h == 3:
      1. Return "unknown".
    2. Else:
      1. Return *(int *)(h-3) (large hash code)
  6. Else:
    1. Return (unsigned int)h >> 2 (small hash code)

If the object is unlocked, we can read the hash code directly from it. If it is locked by our thread, we dereference the pointer in the object's subheader to get the saved subheader and read the hash code from that. If the object is locked by some other thread, we must temporarily put the object's subheader into the busy state so we can read that thread's saved subheader word without worrying about that thread exiting from a MonitorExit and destroying its saved subheader word in the meantime. After reading the saved subheader word we restore the object's subheader into its previous state. Here's an example of this process:

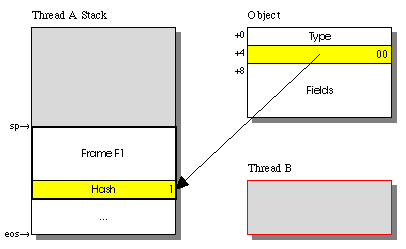

1. Initially thread A holds object o's lock, while thread B wants to read its hash code. Thread B reads o's subheader and notices that object o is locked by a thread other than B.

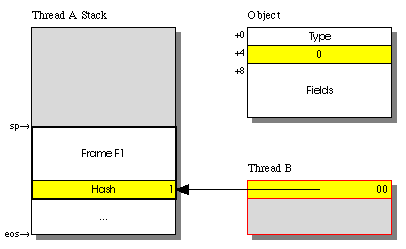

2. Thread B atomically exchanges o's subheader with zero to obtain a pointer to thread A's saved subheader slot. Now thread B can read the hash value from that slot. Thread A cannot erase its saved subheader slot because o's subheader is in the busy state.
3. Thread B writes the old value back into o's subheader.

Writing a Hash Code

Most objects will have their hash code computed as soon as they are created, generally using a global running counter or perhaps a processor cycle counter if available. On an 80486 processor or higher we can quickly obtain a new hash code for an object using:

            mov     eax,4
     {lock} xadd    [running_counter],eax

The xadd instruction should have a lock prefix on a multiprocessor, although omitting it would not be disastrous -- some objects might have duplicate hash codes.

For some special system classes such as java.lang.String we may choose to compute an object's hash code lazily, in which case we store 3 (the uncomputed hash state) into the object's subheader when we create the object and only store the hash code on demand. For such objects we need to be able to write the hash code of an object.

Important: We can only use lazy hash codes in cases where the function f that computes an object's hash code is idempotent. There is a race condition between MonitorExit and writing the hash code of a locked object that could cause an object's hash code to be forgotten soon after it is written, so f could get called several times on the same object. This means, for instance, that f must not increment and return a running counter.

To write a small hash code hash (between 0 and 0x3FFFFFFF inclusive) into an object o, we do the following. s, sv, and h are local variables.

  1. h := hash<<2 | 1
  2. s := o->subheader
  3. If s == 3:
    1. If compare-and-swap(&o->subheader, s, h) then done else go back to step 3.
  4. Else if s&1, done (someone already wrote the hash code into the object; it better be the same as hash!).
  5. Else if s is between sp and eos:
    1. sv := (int *)(s & -2) (the object is locked by our thread, so we can write the saved subheader word directly)
    2. If *sv == 3 then *sv := h
    3. Done.
  6. Else (the object is busy or locked by some other thread):
    1. s := exchange(&o->subheader, 0) (try to make the monitor busy)
    2. If s is zero then:
      1. Yield for a while (the monitor already was busy).
      2. Go back to step 2.
    3. If s == 3:
      1. o->subheader := h (write the hash and restore the monitor to its non-busy state)
    4. Else:
      1. If (s&1) == 0 (s's least significant bit is clear):
        1. sv := (int *)(s & -2)
        2. If *sv == 3 then *sv := h
      2. o->subheader := s (restore the monitor to its non-busy state)

The race condition mentioned above exists between the write in statement 6.4.1.2 and the read of sv in MonitorExit. MonitorExit's algorithm must read the saved subheader slot before it does the compare-and-swap that writes the object's subheader; we could be unlucky enough to set the object's hash code in the saved subheader slot between the read and the compare-and-swap in MonitorExit's algorithm. This race condition can be fixed, but doing so would substantially slow down MonitorExit.

To write a large hash code hash (negative or greater than 0x3FFFFFFF) into an object o, we do the following. w, s, sv, and h are local variables.

  1. Allocate a new extended hash code pool word w that contains hash.
  2. h := w | 3
  3. s := o->subheader
  4. If s == 3:
    1. If compare-and-swap(&o->subheader, s, h) then done else go back to step 4.
  5. Else if s&1:
    1. Deallocate w
    2. Done (someone already wrote the hash code into the object; it better be the same as hash!).
  6. Else if s is between sp and eos:
    1. sv := (int *)(s & -2) (the object is locked by our thread, so we can write the saved subheader word directly)
    2. If *sv == 3 then *sv := h else deallocate w
    3. Done.
  7. Else if s is zero then:
    1. Yield for a while (the monitor is busy).
    2. Go back to step 3.
  8. Else (the object is locked by some other thread; we can't write the hash code due to the race condition):
    1. Deallocate w

In this algorithm we do not write the hash code if the object is locked by some other thread. If we did, we might slowly leak extended hash code pool words due to the above race condition.
