Miscellaneous Composer Dialogs

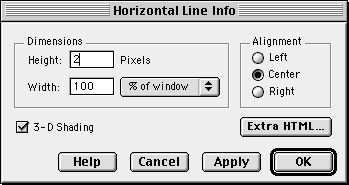

1. Horizontal Line Properties

Windows:	Mac:	UNIX:

Invoke

• When a horizontal rule element is the only thing selected, the dynamic "Properties" item in the Format menu should say: "Horizontal Line Properties." This will bring up the Horizontal Line dialog.
• Double click on a horizontal line.
• Note: We do not invoke this dialog when creating a new horizontal line (Insert | Horizontal Line), unlike other inserted objects such as table, image, target, and HTML tag, because this is a relatively simple object and thus will most likely be used with the same properties as the last horizontal rule inserted. The initial values of Height, Width, Alignment, and 3-D Shading should be obtained from Editor Preferences (editor.hrule.height, editor.hrule.width, editor.hrule.width_percent, editor.hrule.shading, and editor.hrule.align ) rather than the usual method of getting settings from the user.

Initialization

1. Get the properties of the selected horizontal line and fill in matching fields in the dialog:

HTML Parameter	Dialog Control
HEIGHT	Write value into Height editbox
WIDTH	Write value into Width editbox. If the WIDTH value uses "%", then set the Width Units combobox to "% of window"  If WIDTH is not in %,  Display the text "pixels" in the combobox.
CENTER, RIGHT	Set appropriate Alignment radio button for Left, Center, and Right alignment. Default when parameter is missing is "Left"
NOSHADE	If NOSHADE parameter is present, then clear the 3-D shading checkbox. Default when not present is to check this checkbox.

2. The "Save settings as default" checkbox is checked the first time this dialog is used during the current session. If the user changes this setting, we store it in a global variable so the checkbox is the same as the user's last setting, but only during this editing session.

Actions



Click Button	Response
OK or Apply	Get the state of the controls and save the Height, Width, and NOSHADE values Save the HEIGHT editbox value. Save the WIDTH editbox value and append "%" if the combobox state is "% of window" Include the NOSHADE parameter only if the "3-D shading" checkbox is unchecked Save the extra HTML If the "Save settings as default" checkbox is check, save the appropriate values to preferences: editor.hrule.height, editor.hrule.width, editor.hrule.width_percent, editor.hrule.shading, and editor.hrule.align Apply all settings to the highlighted horizontal line in the document. Finish: If OK was used: Dismiss the dialog If Apply was used: Change the text on the "Cancel" button to "Close" to mimick the behavior of a buttons in a multipane dialog. The dialog should stay active.
Cancel	Dismiss the dialog and do not change any settings
Extra HTML	Popup the Extra HTML dialog and save the resulting string as the "extra HTML" for the HRule element.
Help	Bring up help for this dialog. Remain in dialog.

Enhancements

1. When the current selection is a single Horizontal line, using "Insert | Horizontal line" edits the properties of the object rather than inserting a new one. We should decide if that is the behavior we want, as discussed in the Image dialog enhancements.
2. The "% of window" text in the Width units combobox should be changed to "% of parent" when the HRule location or insert point in within a table cell.

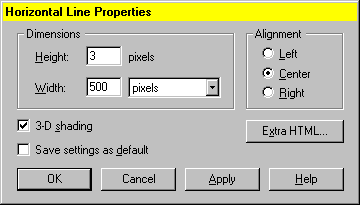

3. Note the differences between the current Windows and Mac versions. The Windows version is missing the "Apply" button and the Mac version is missing the "Save settings as default" checkbox. I think both should be present, so here is a suggested layout with all controls (note that the locations of OK and Help should be reversed for the Mac):

---

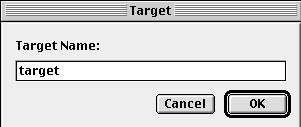

2. Target Properties

Windows:	Mac:	UNIX:

Invoke

• Menu: Insert | Target to create a new target. Caret can be anyplace in the document and anything can be selected.
• Toolbar: Target button (edit properties of existing target if it is the only thing selected, else we will create a new target)
• Menu: Format | Target Properties, when the only item selected is an existing target.
• Double click on an exisiting target (first mouse down should select the target)

Initialization

1. Get the current selection in the document.
• If a single existing target is selected, then this will change this element.
• If a single target is not selected, then we will insert a new target
2. Get the currently-selected text from the document to use as the initial string in the target editobox. This string should be processed to:
1. Strip out extra spaces and the beginning and end
2. Replace all whitespace characters (tabs, linefeeds, etc.) with spaces
3. Limit the length of the text to be used in case selection is very large (about 80 characters maximum?)

Dialog Rules

Disable the OK button when the target editbox is empty

Actions



Click Button	Response
OK	Set target NAME data from the target editbox contents: If original selection is an existing target, change the target NAME to the new string. If selection was not an existing target, create a new target with user's NAME string and insert into document at current insert point. Dismiss the dialog
Cancel	Dismiss dialog and do not change an existing target and do not insert a new target.
Help	Popup help for targets. Remain in target dialog.

Enhancements

1. When the current selection is a single target, using "Insert | Target" edits the properties of the object rather than inserting a new one. We should decide if that is the behavior we want, as discussed in the Image dialog enhancements.
2. Currently this is the only "object property" dialog that does not include an "Extra HTML" button (this is a reported bug.) For consistency, we should probably add this functionality to the Target Properties dialog.

---

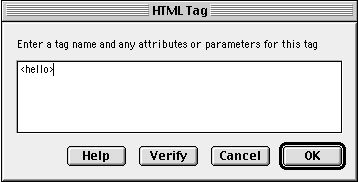

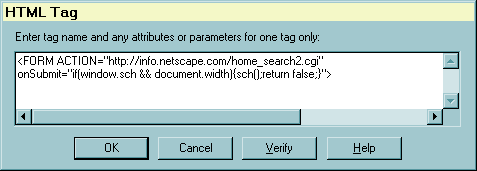

3. HTML Tag

Windows:	Mac:	UNIX:

Invoke

Menu: Insert | HTML Tag
Note: We have a toolbar button in 4.x and earlier versions (the so-called "poof" button), but we decided to remove this button for the 5.0 toolbar (primarily to save space). If the new toolbars will user-configurable, we should consider including it as an optional button to add, but it is not in the default set.

Initialization

1. Get current selection in the document:
1. If an existing "unknown" html tag is the only element selected, then use the contents of this tag to fill the multiline editbox.
2. If an unknown tag is not the selection, then we will insert a new tag.

Actions



Click Button	Response
OK	Insert the HTML tag into the document at the current insertion point (caret location) and close the dialog.
Cancel	The usual - change nothing and insert nothing
Verify	All we do now is check that the first and last characters (after stripping spaces from the ends) of the string are "<" and ">" respectively.

Enhancements / Issues

1. The Verify button doen't do anything more than check for matching "<" and ">". We should either improve this to do something more useful or remove the button.
2. When the current selection is a single existing HTML tag, using "Insert | HTML Tag" edits the properties of the object rather than inserting a new one. We should decide if that is the behavior we want, as discussed in the Image dialog enhancements.
3. The use of this dialog is much less clear with the new document model and layout engine. We certainly should not have any "unsupported" HTML tags like we did before, although this could be used to insert and edit an arbitrary tag. The problem is that the new Editor is not supposed to know anything about HTML per see, just the DOM contents, so it is unclear to me how to set the contents of an "unknown" or arbitrary tag using the DOM. The solution may be to be sure the user string is well-formed HTML and pass it through the parser using the same method we will need to paste HTML into the document.
4. We have discussed replacing this with a more sophisticated dialog that might be designed as a generic Property Dialog, ala Visual Basic property inspectors, so a list of arbitrary tag parameters are used to build a grid where the left column contains these parameters and each has a combobox to the right where all possible legal values for that parameter are filled in. This combobox is used to edit the state of the attribute. The "possible legal values" must be obtained from a DTD describing the "unknown" tag and all its parameters and possible values.

---

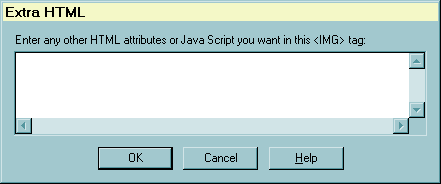

4. Extra HTML

Windows:	Mac:	UNIX:

Invoke

From the "Extra HTML" button present in most "object" property dialogs: Link, Image, Horizontal Line, Table, and Table Cell.

Initialization

Get the "extra HTML," which is all the text in a tag remaining after all editor-supported parameters are parsed out, from the relevant tag.
This is most commonly scripting contents, but also will contain, for example, the contents of the USEMAP parameter for the <IMG> tag end up in extra HTML.

Actions



Click Button User Action	Response
OK	Update the contents of the tag associated with this string
Cancel	Dismiss the dialog and change and insert nothing
Help	Bring up help topic for extra HTML

Enhancements / Issues

The use of this dialog in the new editor is problematic, given that we are only supposed to modify a document via the DOM. We might redesign this dialog to reflect these architectural changes in how the editor works, such as those suggested for the HTML Tag dialog.
Another possibility is to not support editing arbitrary "extra parameters" in the new UI, but rather use the modularity of the new editor to replace "simple" with "advanced" versions of property dialogs to support different levels. In this case, we would probably need at least a "Java Script" button in all object property dialogs since that will be the most common usage. This JavaScript button would bring up a simple editor identical in format to the current Extra HTML dialog, unless we want to get fancy and support specific JS attributes for particular element types (this should definitely be on a "future features" list.)

---

5. Remove All Character Styles

Windows:	Mac:	UNIX:

Invoke

When using the menu command "Format | Remove All Styles" or the "Remove all styles" toolbar button is used and:

1. The current document selection contains one or more links and
2. The preference "editor.hints.removelinks" is non-zero

Initialization

All strings in the dialog may be static.
This is currently a "generic hint dialog," i.e., the dialog caption and message strings at the top of the dialog are passed in so the general format can be used for similar dialogs where we want to have a preference tied to the "don't bother me again" checkbox. The current 4.5 version doesn't use the other versions of the hint dialog, so we may not need to make this generic dialog for the 5.0 version

Actions

When either "Yes" or "No" is pressed:
1. Continue clearing all character attributes in the selection, but remove the links only if the user clicked the "Yes" button.
2. If the "Don't display this message again" checkbox is checked, set the preference "editor.hints.removelinks" to 1.
3. Dismiss the dialog



Enhancements

Resolve differences in design between different platform versions.

---

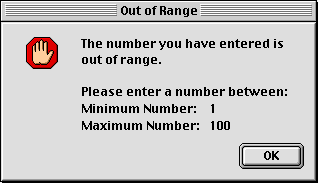

6. Numeric Range Error

Windows:	Mac:	UNIX:

Invoke

Used by numerous property dialogs when an user-enterred editbox or combobox value is outside of a given range of integers.

Initialization

Fill in the minimum and maximum allowable values (passed into the dialog) into the message string and display this message.

Actions

After user clicks OK, dismiss the dialog and put the focus in the edit field where the error occured

Enhancements

Resolve differences in design between different platform versions.
