CCK 5.0 Wizard Final User Interface (UI) Design

CCK Product Description
CCK Wizard Requirements
Customizations That Can Be Performed Using the Wizard
Open Issues
Tour of User Interface (updated)
Implementation of Online Help (new)

CCK Product Description

Client Customization Kit (CCK) consists of a wizard application that allows ISPs and content providers to build customized Communicator installers for delivery on CD-ROM or by network download. ISPs can use the wizard to customize Communicator preferences, and add their own branding elements to Communicator, the CD shell, and the installer. The output of the wizard is a ready-to-distribute customized Communicator installer.

The wizard incorporates the most typical customizations previously performed using three separate tools (Account Setup Editor, Configuration Editor, and Install Builder) into one consistent interface that guides the user through the entire customization process.

• Wizard should be easy to use, fast, and stable
• First screen must consist of "what you need to get started" checklist
• Sample files provided for all graphics and animations
• List defaults in all fields where applicable
• Supplemented by easy to use documentation (Quick Start Guide) that describes how to create the customized files used by the wizard
• Wizard customizations must match CCK license agreement

1. Gather customized files and information
2. Add your branding
• includes CD shell customizations
3. Customize Communicator
4. Enter connection settings
5. Customize and build the installer

• the user must edit the .jsc file that the wizard creates. We will provide a separate hashing utility that user uses to convert their edited .jsc file to a hashed file.
• we must provide the user with a tool (command-line-based install builder tool?) to build the installer that includes the manually customized files


• The Information Design group is not currently staffed with a graphic designer, so there's no resource for creating the sample files that we want to accompany the wizard.
• Where do the wizard files (.cfg, .jsc, .ini, rshell.ini) get stored? They must be accessible to the user.
• We need to define the points during the wizard process where users can manually edit any of the files produced by the wizard, and then continue the wizard process.

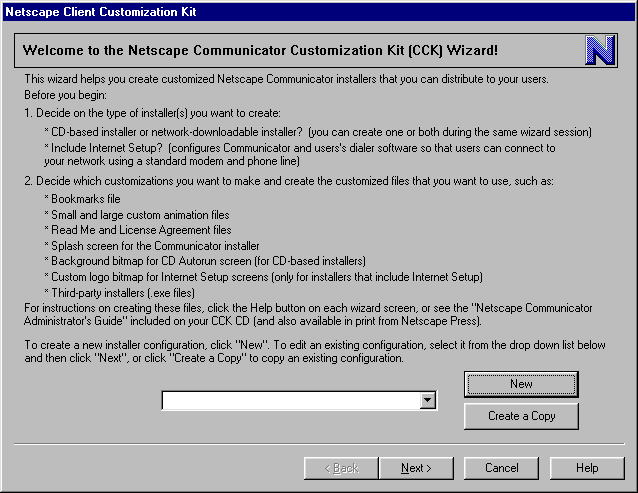

Screen 1: Welcome

Filename: checklist.ini




Feature	Description	Questions
New button	Creates a new installer configuration. A dialog will appear so the user can enter a name for the configuration.	Where do new installer configurations get saved?
Select an existing configuration (drop down list)	Lets the user edit an existing configuration.
Create a Copy	Lets the user create a copy of an existing configuration and save it as a new configuration. (Works like "Save As")

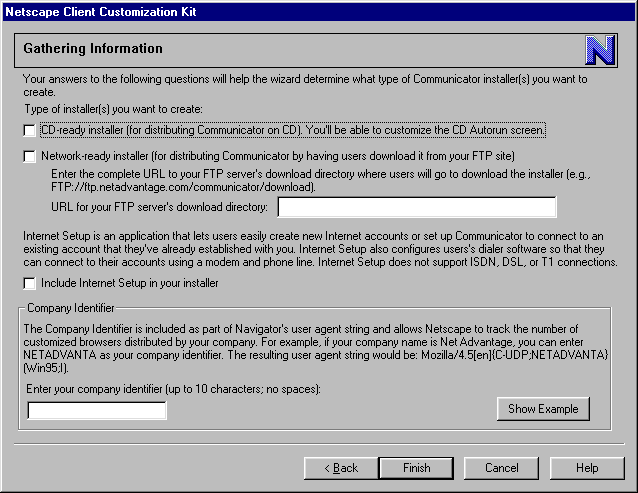

Screen 2: Gathering Information

Filename: info.ini



Feature	Description	Questions
CD installer checkbox	If checked, clicking the "Build Installers" button on last wizard screen will cause a CD-ready installer to be created.  If checked, the "Customizing the CD Autorun Screen" wizard screen will be displayed. If not checked, this screen doesn't appear.
Network installer checkbox	If checked, clicking the "Build Installers" button on last wizard screen will cause a Network-ready installer to be created.
URL for FTP server's download directory	Dimmed unless "Network installer" checkbox is checked. This URL is required for network builds. This URL is inserted into the config.ini file so that when the setup.exe stub installer reads the config.ini file, the installer knows where to go to download the JAR files.
Internet Setup checkbox	If checked, the Internet Setup module is automatically included in the installer when user chooses "Build Installers" on last wizard screen. If checked, the "Customizing Internet Setup" and "Customizing Internet Setup - Points of Presence" wizard screens will appear.
Company Identifier	Appended to user agent string.

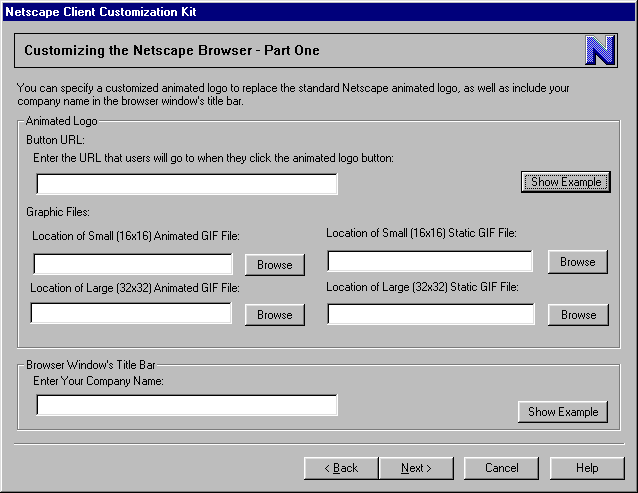

Screen 3: Customizing the Browser - Part One

Filename: branding_page1.ini



Feature	Description	Questions
Button URL	URL associated with animated logo button. Defaults to home.netscape.com.
Small Animated GIF	16 by 16 pixel animated GIF file; no default.
Small Static GIF	16 by 16 pixel still frame file; no default.
Large Animated GIF	32 by 32 pixel animated GIF file; no default.
Large Static GIF	32 by 32 pixel still frame file; no default.
Company Name	prepended to "-Netscape" in browser window title bar	character limit?

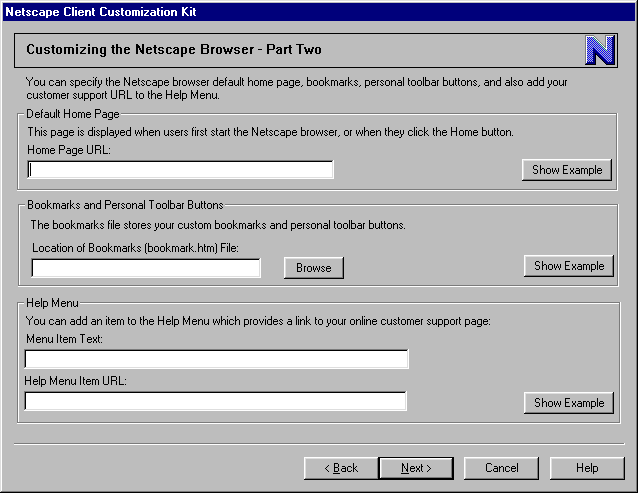

Screen 4: Customizing the Browser - Part Two

Filename: customize_page1.ini



Feature	Description	Questions
Home Page URL	defaults to home.netscape.com.
Bookmarks file	if not specified, default bookmarks file is used.
Help Menu Item Text	no default
Help Menu Item URL	no default

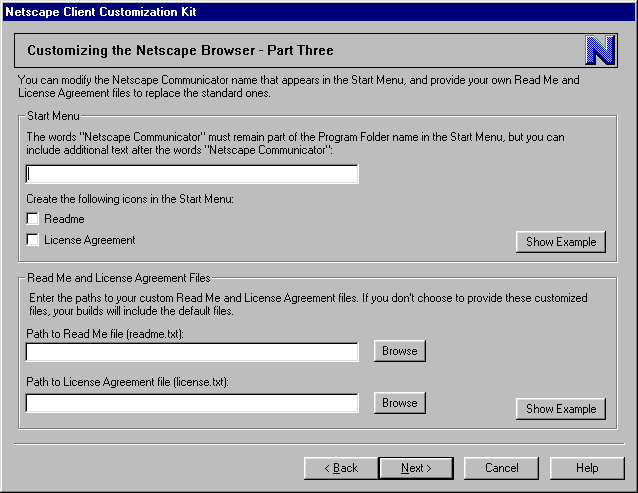

Screen 5: Customizing the Browser - Part Three

Filename: customize_page3.ini




Feature	Description	Questions
Program Folder name	no default. This text must be appended to the required text "Netscape Communicator".
Readme checkbox	unchecked by default
License Agreement checkbox	unchecked by default
Readme file	defaults to standard Readme
License Agreement file	defaults to standard License Agreement	What kinds of changes to the license agreement do we permit? Must changes be appended to standard agreement or can users replace standard agreement?

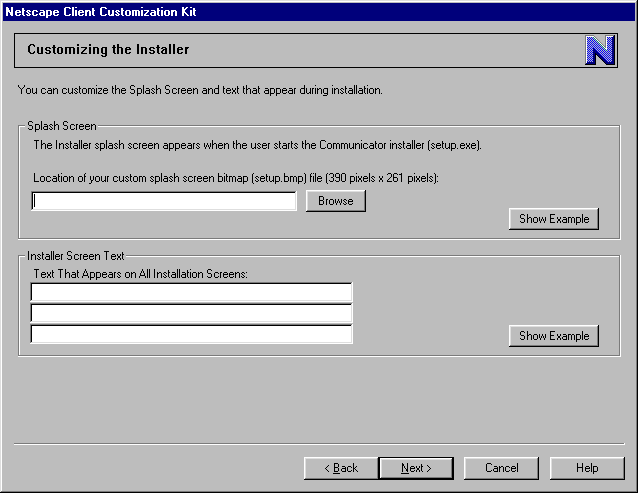

Screen 6: Customizing the Installer

Filename: branding_page4.ini



Feature	Description	Questions
Installer splash screen bitmap file	if not specified, default setup.bmp is used.
Installer screen text	this text should be appended to the required blue screen text that must appear on all installer screens.	character limit for entries?

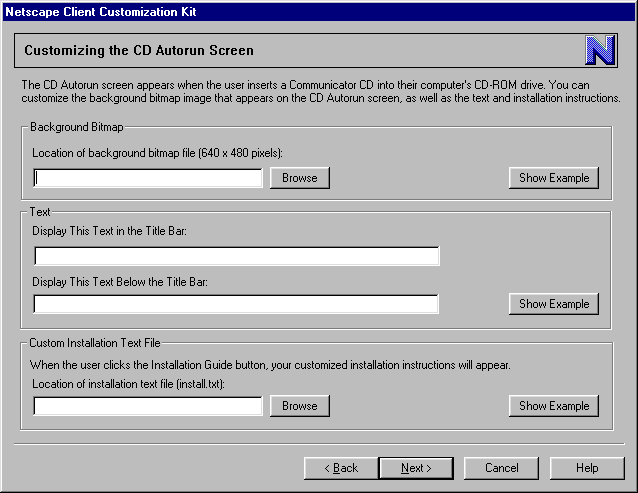

Screen 7: Customizing the CD Autorun Screen

Filename: branding_page2.ini




Feature	Description	Questions
background bitmap	defaults to supplied background bitmap file.
title bar text	defaults to what?	character limit?
text below title bar	is there a default?	character limit?
install.txt	defaults to supplied install.txt

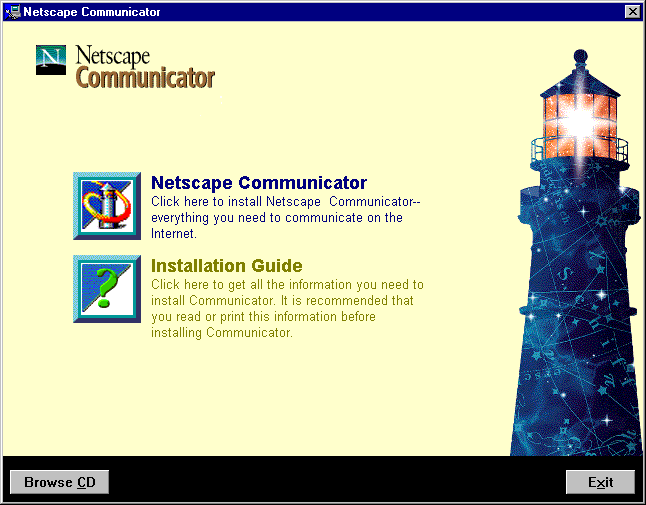

Note: the above dialog assumes that the user is customizing one CD shell screen that contains two buttons:

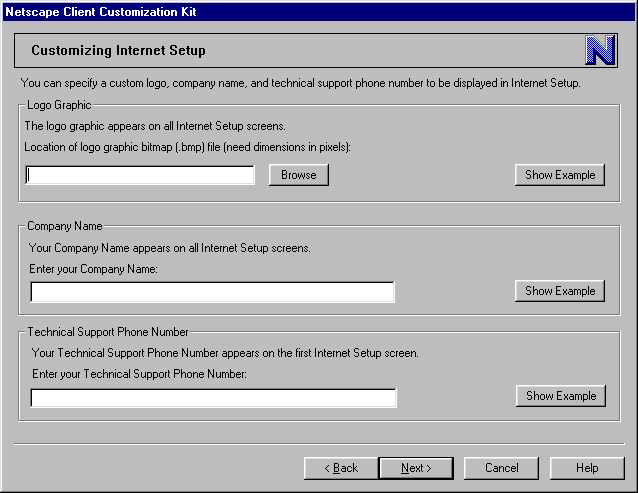

Screen 8: Customizing Internet Setup

Filename: branding_page3.ini



Feature	Description	Questions
Logo graphic	is there a default?	Size of graphic (pixel dimensions)?
Company name	is there a default?	character limit on entry?
Technical Support Phone number	no default

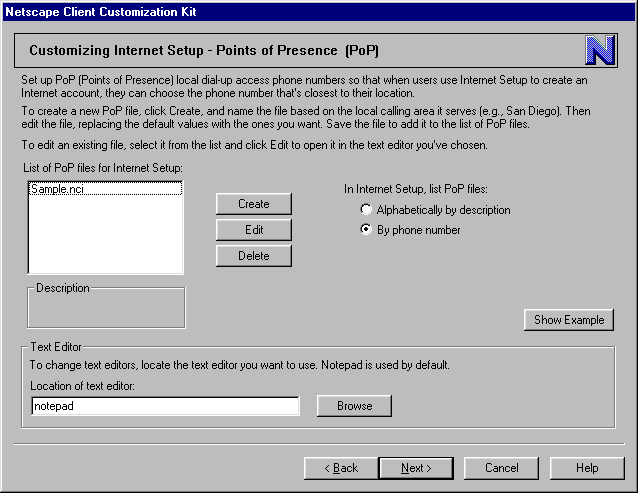

Screen 9: Customizing Internet Setup - Points of Presence

Filename: AccountSetup.ini



Feature	Description	Questions
NCI file list	list is empty by default?	Can we call these *.pop files? No CCK user will understand what ".NCI" stands for (Network Configuration ?)
Create button	Displays dialog asking user to name the file; then opens the file in chosen text editor. New file will consist of a template that user can use to enter his specific network/proxy information.
Edit button	lets user edit selected NCI file in chosen editor. Saving the file closes the editor and returns user to the wizard screen?
Delete button	deletes selected NCI file from list, but not from user's hard disk.
Text Editor	defaults to Notepad.

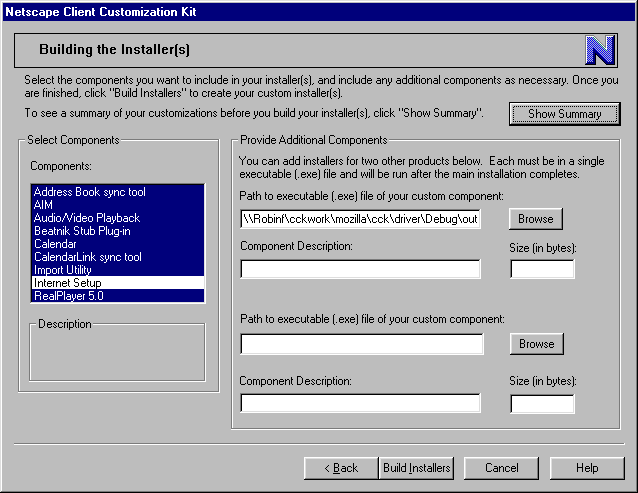

Screen 10: Building the Installers

Filename: build_page1.ini



Feature	Description	Questions
Components list	Lists all Communicator components that are provided for including in an installer. User can build a Navigator-only installer by selecting the "Navigator stand-alone" component. Internet Setup will NOT appear in this list. It is automatically included/ not included depending on whether the user chose the "Include Internet Setup" checkbox on screen 2 (Gathering Information).	How are we handling components that are required to be installed (such as AIM)?
Path to .exe file	no default
Component Description	no default
Size in bytes	no default
Show Summary button	Displays a dialog that contains a non-editable summary of all the user's inputs to the wizard.
Build Installers button	Displays dialog with progress bar/status messages as installer creation is in progress.

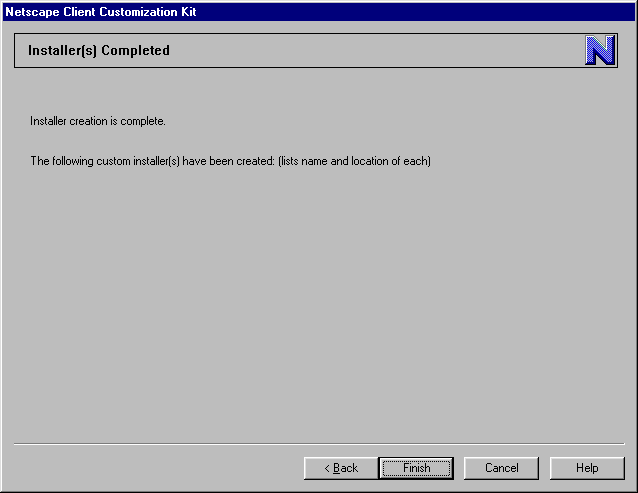

Screen 11: Installer(s) Completed

Filename: done.ini

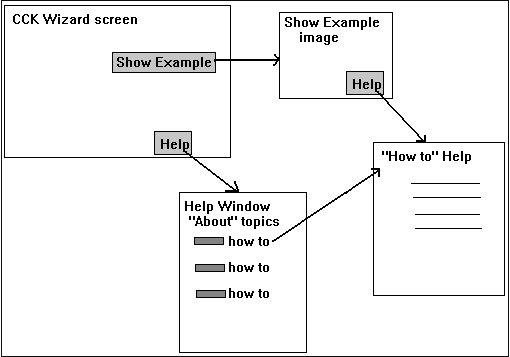

Implementation of Online Help

The CCK wizard will offer help for each wizard screen as well as help for each Show Example image.

Clicking the Help button in a wizard screen will display a Help window (scrolling text widget implemented via INI file) that contains information about each topic for that wizard screen. To get help with creating a file requested by that wizard screen, the user will click a "How To" button, which opens another Help window that contains the steps necessary to create the desired file.

Clicking the Help button from a Show Example dialog will take the user directly to the "How To" Help window with instructions for creating the file.
