Electrical Fire Design Primitive Graph Format Example 1

To illustrate the primitive graph format we take a look at an example of a Java function, its bytecode representation, and its primitive graph representation.

Source Code

The Java function is a simple string-to-int parser:

public static int strToNum(String s) throws NumberFormatException
	{
	char a[] = s.toCharArray();
	boolean negative = false;
	int i = 0;
	int n = 0;

	if (a.length>i && a[i]=='-')
		{
		negative = true;
		i++;
		}
	if (i == a.length)
		throw new NumberFormatException();
	while (i != a.length)
		{
		if (a[i] >= '0' && a[i] <= '9')
			{
			n = n*10 + a[i] - '0';
			i++;
			}
		else
			throw new NumberFormatException();
		}
	return negative ? -n : n;
	}

javac produces the following bytecode representation:

.method public static strToNum(Ljava/lang/String;)I
        .throws java/lang/NumberFormatException

        .limit stack 3
        .limit locals 5
        aload_0
        invokevirtual java/lang/String/toCharArray()[C
        astore_1
        iconst_0
        istore_2
        iconst_0
        istore_3
        iconst_0
        istore 4
        aload_1
        arraylength
        iload_3
        if_icmple Label1
        aload_1
        iload_3
        caload
        bipush 45
        if_icmpne Label1
        iconst_1
        istore_2
        iinc 3 1
Label1: iload_3
        aload_1
        arraylength
        if_icmpne Label4
        new java/lang/NumberFormatException
        dup
        invokenonvirtual java/lang/NumberFormatException/<init>()V
        athrow
Label2: aload_1
        iload_3
        caload
        bipush 48
        if_icmplt Label3
        aload_1
        iload_3
        caload
        bipush 57
        if_icmpgt Label3
        iload 4
        bipush 10
        imul
        aload_1
        iload_3
        caload
        iadd
        bipush 48
        isub
        istore 4
        iinc 3 1
        goto Label4
Label3: new java/lang/NumberFormatException
        dup
        invokenonvirtual java/lang/NumberFormatException/<init>()V
        athrow
Label4: iload_3
        aload_1
        arraylength
        if_icmpne Label2
        iload_2
        ifeq Label5
        iload 4
        ineg
        ireturn
Label5: iload 4
        ireturn
.end method

Bytecode Processor's Representation

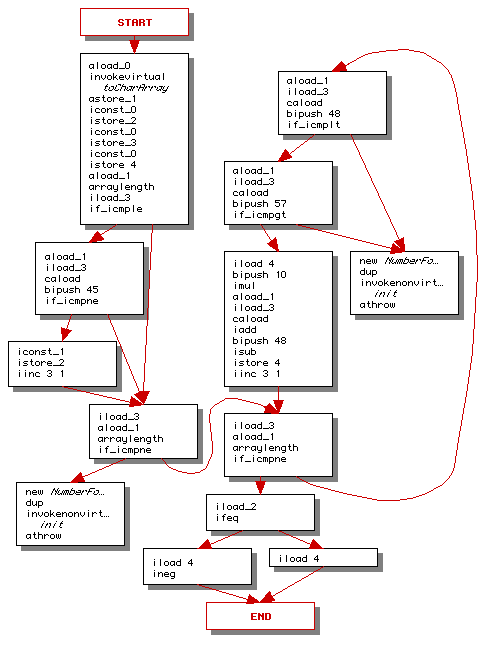

Figure 1. Basic Blocks

The bytecode processor finds the basic blocks and transfers of control in the raw bytecode program to produce the graph above.

That graph is not quite a complete representation of the function because it does not represent exceptional control flow paths. A number of the bytecodes (athrow, invokevirtual, invokenonvirtual, arraylength, and caload) can cause exceptions, and asynchronous exceptions can also occur. These additional control flow paths will be represented in the primitive graph constructed below. For now, each instruction or sequence of instructions is annotated with information about where exceptions should go. In this graph there are no catch or finally handlers, so every instruction is annotated with an exceptional path (not shown in the figure) that goes to the end node.

Caution: The primitive graph below corresponds to an older specification of primitive graphs. The graph below should be corrected for:

• The aexc node must be the target of a backward control flow edge, not the source.
• The control edges pointing to the end node should be exception and return edges.
• lookupvirtual, invokevirtual, and arraylength are now comprised of simpler primitives.
• Null pointer and array range checks are now done using separate opcodes that throw exceptions directly.
• The offset is included as part of the +a primitive.
• The condition (=, !=, etc.) should be part of the if control node instead of inside its own primitive.
• new nodes should be system calls.
• new nodes should have outgoing tuple edges instead of pairs of memory and address edges.

Primitive Graph

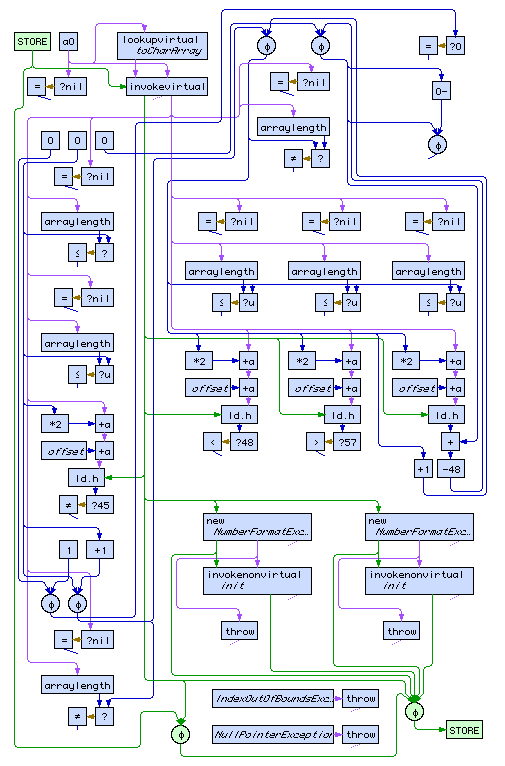

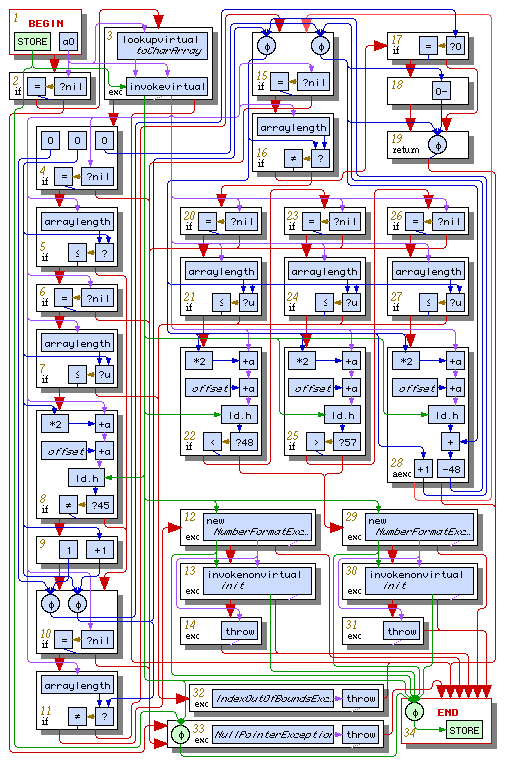

Figure 2. Primitive Graph   [level 2 color postscript version]

The complete primitive graph for our sample function is shown in the figure above. Since the graph is fairly complex, its control flow and dataflow layers are shown separately in figures 3 and 4 below.

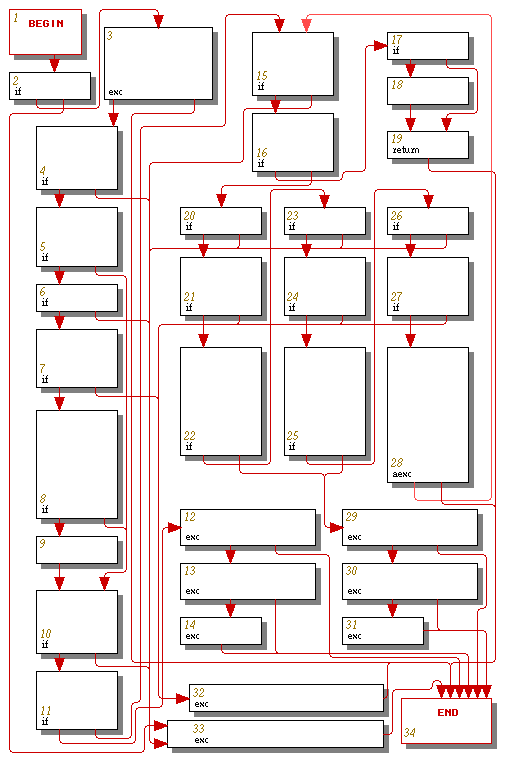

Figure 3. Primitive Graph's Control Flow Layer   [level 2 color postscript version]

Figure 4. Primitive Graph's Dataflow Layer   [level 2 color postscript version]
