Introduction

Background

Just after the X11/Motif toolkit was developed on both IRIX and Linux and the Viewer was up and running, the aggregation of views with widgets was removed from the architecture. This left a lot of baggage in the Windows and Motif implementations. As we started the Mac port of the toolkit we decided to greatly simplify the widget hierarchy and architecture in order to make it easier to maintain the existing toolkits and port to new toolkit down the road. Aggregation was removed and we decided all "widget" interfaces would inherit directly from nsISupports.

These issues will be addressed in more depth later.


Overview

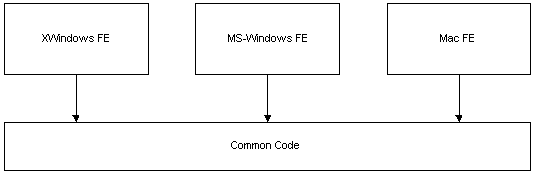

As new features were added to the product, this often meant the work had to be done separately for each platform. An advantage to this approach was that platform specific Look & Feel was guarenteed for for the set of common control that existed across platform. It may or may not have been guarenteed for customed widgets developed for each platform.

NGLayout is fully based on XPCOM and all implementation exists behind a set of public interfaces. In NGLayout all platform specific code is contained in the Widget and GFX libraries. The GFX library is responsible for graphics and rendering primitives. The Widget library encompasses all windowing and GUI components necessary for creating HTML forms and the GUI interface on given platform. This approach has many advantages:

• The implementation for any given GUI implementation is hidden from the developer of XP applications.
• The platform specific code is small, easy to maintain and very isolated.
• The widget toolkit maintanance is reduced and it requires fewer platform secific developers to add new features and maintain it.
• New custom widgets can be written in an "XP" fashion using GFX. This means they will automatically run on all platforms.

• Platform specific Look & Feel is a bigger challenge for all XP widgets.
• Not all native GUI toolkits contains the same functionality.

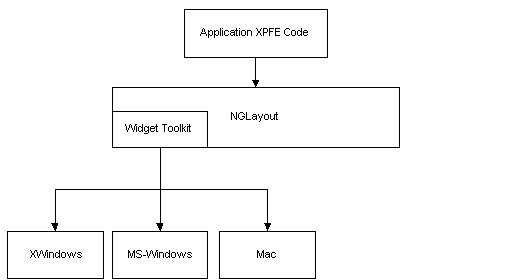

The NGLayout widget toolkit is as follows:

The current "test" Viewer application contains platform specific code for application start up and for implementing menus. It continues to be this way today, more for historical reasons than anything else. Recently, the cross-platform Viewer, with Navigator 4.x chrome, was created almost entirely from the widget toolkit interfaces (XPFE). The only exception is application start up and this will soon be cross-platform also.

All NGLayout-based applications will be created completely from the cross-platform set of APIs.


Toolkit Requirements

The third party toolkits typically:

• Unneccesarily add to the size of the toolkit
• Cannot be distributed under our free source agreement
• Their scope can be too large. Sometimes it is necessary to include most all the of the class hierarchy to use just a few of the classes.
• They do too much. One of the advantages of third party toolkits is that they make creating GUIs easier by hiding and abstracting the event processing. This can cause problems when integrating it into the low-level event processing of NGLayout.
• They add a dependency into our development effort and we become "locked" into their technology.

Interfaces and Inheritance

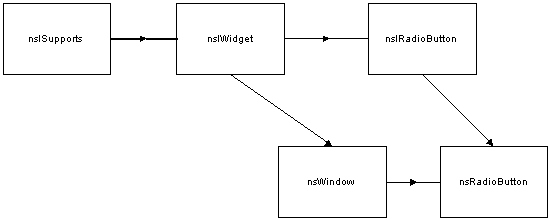

On the surface mulitple inheritance of interfaces seems like a very useful approach. On MS-Windows all widgets are windows. If we take a look at a specific example, several issues will emerge. For instance, a nsIRadioButton inherits from nsIWidget. The interface hierarchy could be: nsIWidget->nsIRadioButton. The implementation hierarchy would then be nsWindow->nsRadiobutton.

Here are the issues:

• Virtual base classes cannot be used because they are not supported by all C++ compilers.
• Since we are not using virtual base classes, each of the nsIWidget's methods must be qualified for the nsRadioButton. Otherwise the compiler asks: "Does the method come from nsIWidget that nsIRadioButton derives from? Or does the method come from the nsIWidget that the nsWindow derives from?"
• All of the widgets that derive from nsIWidget must qualify each method for the nsIWidget. This can be done using one macro for the header file specification and an other macro for the implementation, but this gets very ugly. The nsIWidget interface has quite a number of methods and the macro would be quite large.
• The Windows toolkit was originally developed with way and it became a maintanence nightmare.

A minor point was also made that a developer using the hierarchy knows that he only needs to look at two interfaces for any given widget: the nsIWidget interface and the interface for the specific widget. This is an important point when detailed documentation is not available.


Event Processing

The most important, is that when the widgets live inside the layout engine they are to do as little as possible, they must dispatch all their events and then wait to be told what to do. JavaScript is a key member in the event processing chain and JS must be able reject certain events if it chooses.

For example, when a user clicks on a radiobutton, the radiobutton must first dispatch the click event and then wait to be told whether it's clicked or not clicked. The view/frame system or JavaScript determines wether the radiobutton should process the click event and whether its value should set or cleared. In many toolkits, radiobutton processing is done automatically, so in many ways the native toolkit does more than it should.



Roadmap

Currently, most all the widgets are developed from the native platform widgets with the exception of the Toolbar, the Toolbar Manager, the ImageButton, and the MenuButton (a button with an assosicated drop down menu).

Overtime we hope to develop many more cross-platform widgets on top of GFX that will enable developers to provide their own Look & Feel. These lightweight will not require a back-end native widget.
